Straight Splitter Tunnel

Store / Front Splitters
£369.00
In stock
Product Details

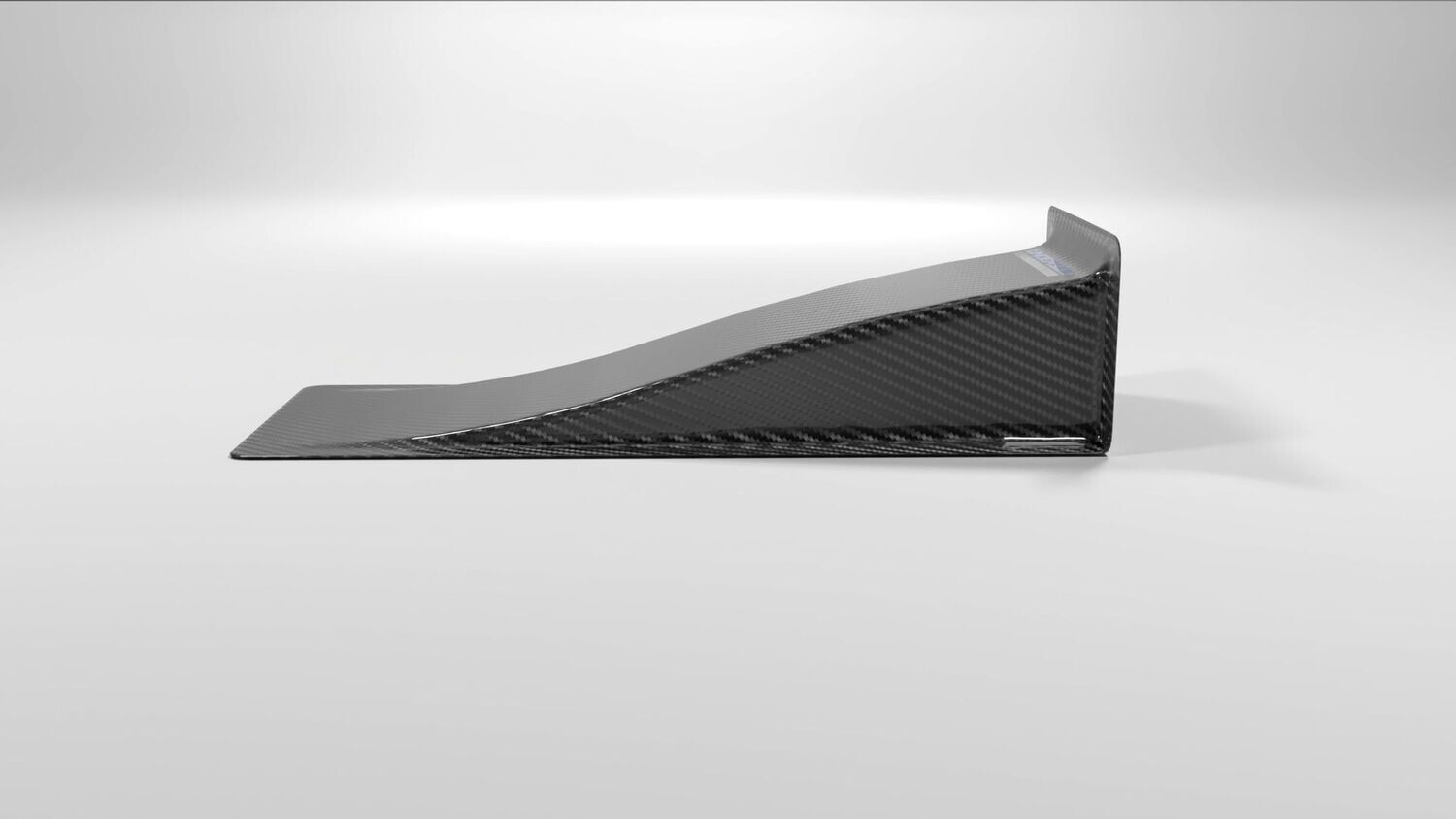

The Straight Splitter Tunnel has been designed to increase the downforce of any splitter, using CFD to maximise the performance generated. The straight design will typically be placed inboard of the front wheel to draw air into the void around the hub/driveshaft, where it can then be extracted behind the wheel and out of the front wheel arch.

Use on its own or in conjunction with our Large Curved Tunnels, Small Curved Tunnels or both to provide increased performance, or for the ultimate setup combine with our Flat or Curved Splitters for the very best front end setup for your vehicle.


Specification

Material: Carbon Fibre (2x2 Twill, Bi-Axial and Foam Core)
Resin Infused producing high-strength & low weight parts
Designed using CFD to ensure optimum performance
Dimensions each: 472mm x 190mm x 117mm (LxWxH)

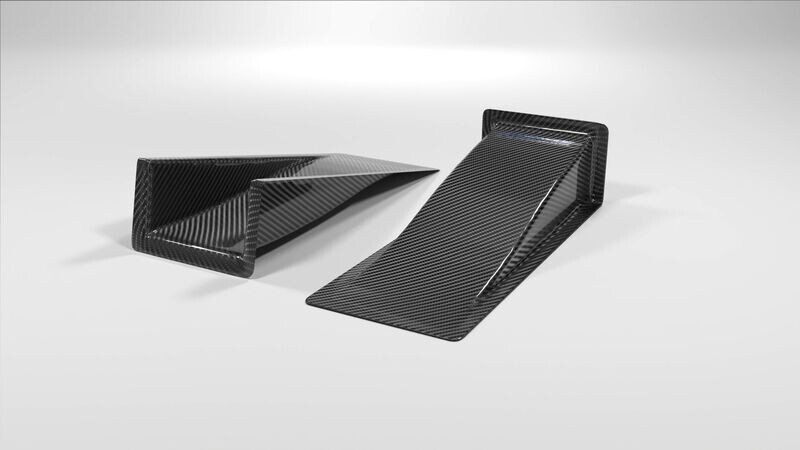

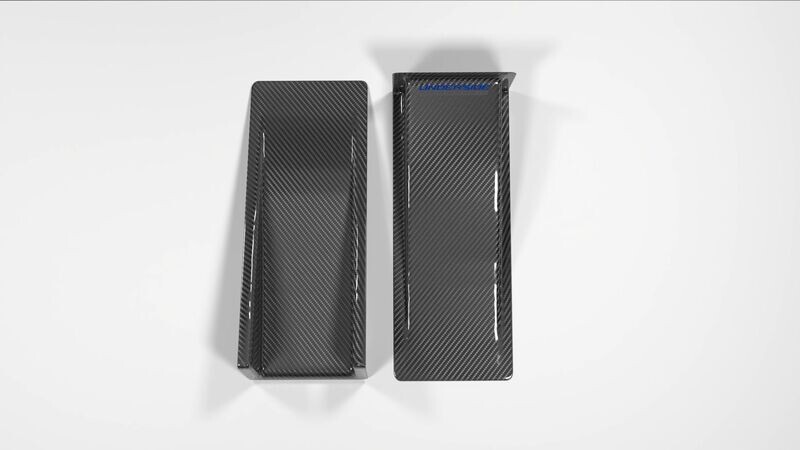

Sold as a pair, left & right hand


Installation

These splitter tunnels can be fitted to any flat profiled splitter, designed to be bonded, riveted or bolted using low profile hardware.
Placement of the tunnels is important for maximum performance, so ensure you have plenty of room in front of the tunnels for your low pressure region and behind for the extraction of air.
Your splitter must be installed securely to the vehicle chassis, as the downforce generated with these tunnels will compromise any insufficiently mounted hardware.
