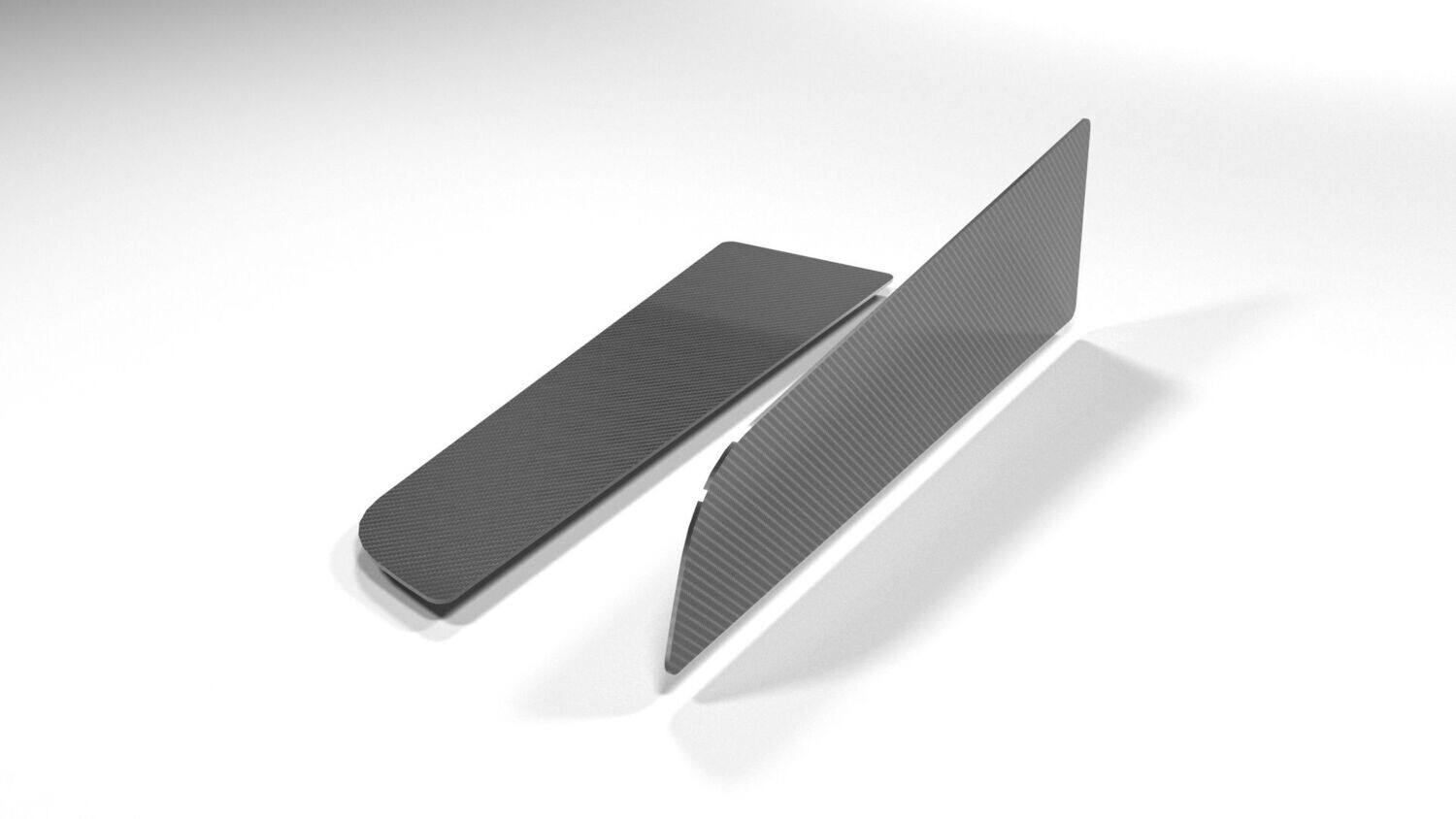

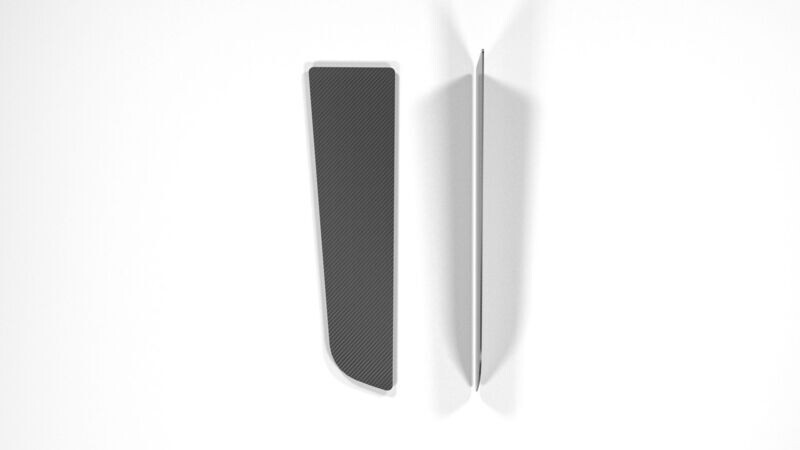

Splitter End Fences (Customer Template)

If you already have a splitter or have ordered one of our own splitters, then a set of Carbon Fibre End Fences are a must to control the high pressure airflow that wraps around your front bumper. End Fences will prevent the airflow from becoming turbulent around the front of the vehicle and keep the high pressure air where it needs to be... on top of the splitter!

They ensure clean airflow seperation between high pressure air on top of the splitter and the low pressure air the other side, and when installed correctly will aid the re-introduction of this high pressure air down the side of the vehicle.

Simply provide your desired shape of End Fence required using either a cardboard template, dimensioned sketch, or CAD file (Solidworks, IGES, STL, DXF or DWG). We will do the rest and return a pair of lightweight, super strong custom Carbon Fibre End Fences that you can then mount to your splitter for immediate downforce improvements. Please specify if you would like Foam or Aluminium as a core material, the Foam is obviously lighter however the Aluminium will withstand more track/kerb abuse.

Material: Carbon Fibre (2x2 Twill, Uni Directional and Foam or Aluminium Core)

Resin Infused producing high-strength & low weight parts

Shape profile to customers specification

Typical Thickness: 3-5mm

Sold as a pair, left & right hand

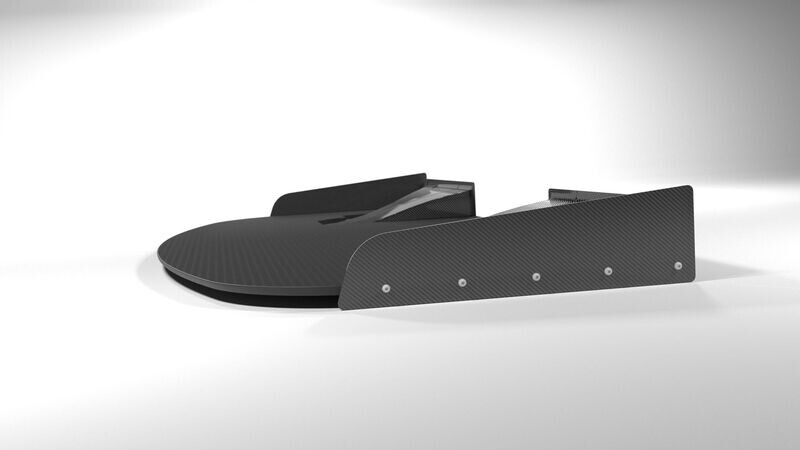

Splitter End Fences typically are installed to the edge of a Splitter, using either direct fixings into the Splitter material or small brackets with low profile hardware on the upper or lower surface (upper prefered for performance).

The End Fences do not see as much loading as the Splitter itself, therefor you don't have to go crazy, but do bear in mind that these can sometimes be the lowest point of your Splitter so will take some track/kerb impacts.
