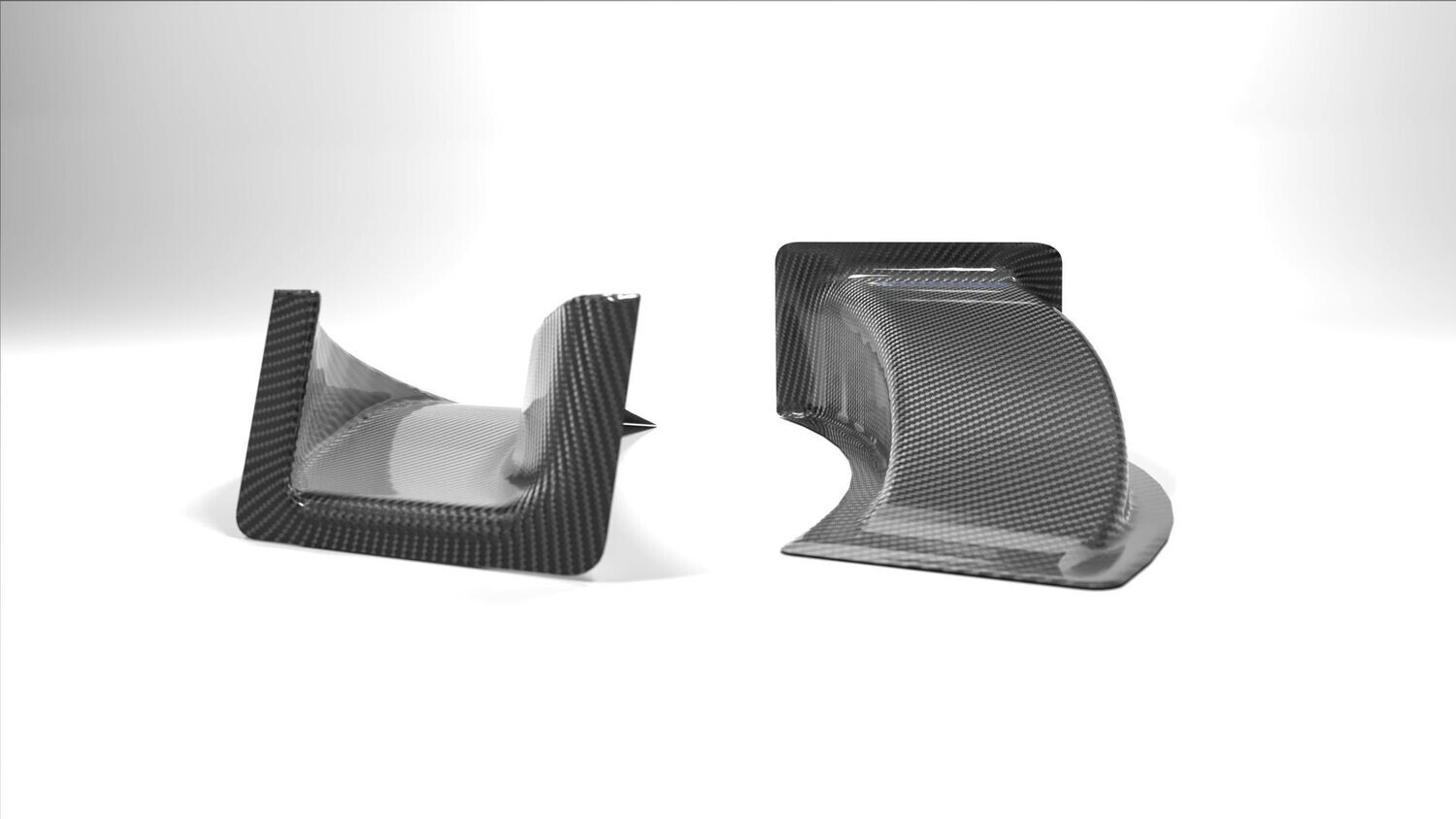

Small Curved Splitter Tunnel

Store / Front Splitters
£349.00
In stock
Product Details

The Small Curved Splitter Tunnel has been designed to increase the downforce of any splitter, using CFD to maximise the performance generated. The small curve design would typically be fitted next to our large tunnel towards the outside of the wheel, this will increase the volume of air pulled through the splitter and create an outwash in front of the tyre, helping to remove some of the wheel arch high pressure air.

Use on its own or in conjunction with our Straight Tunnels, Large Curved Tunnels or both to provide increased performance, or for the ultimate setup combine with our Flat or Curved Splitters for the very best front end setup for your vehicle.


Specification

Material: Carbon Fibre (2x2 Twill, Bi-Axial and Foam Core)
Resin Infused producing high-strength & low weight parts
Designed using CFD to ensure optimum performance
Dimensions each: 372mm x 369mm x 117mm (LxWxH)

Sold as a pair, left & right hand


Installation

These splitter tunnels can be fitted to any flat profiled splitter, designed to be bonded, riveted or bolted using low profile hardware.
Placement of the tunnels is important for maximum performance, so ensure you have plenty of room in front of the tunnels for your low pressure region and behind for the extraction of air.

Your splitter must be installed securely to the vehicle chassis, as the downforce generated with these tunnels will compromise any insufficiently mounted hardware.
