Large Canards Pair

Store / Front Canards
£299.00
In stock
Product Details

Do you need a little extra downforce in the front, have you just fitted a large rear wing and now you're trying to balance the front and rear, if any of this is true then look no further… Our Large Canards are just the thing to help you.

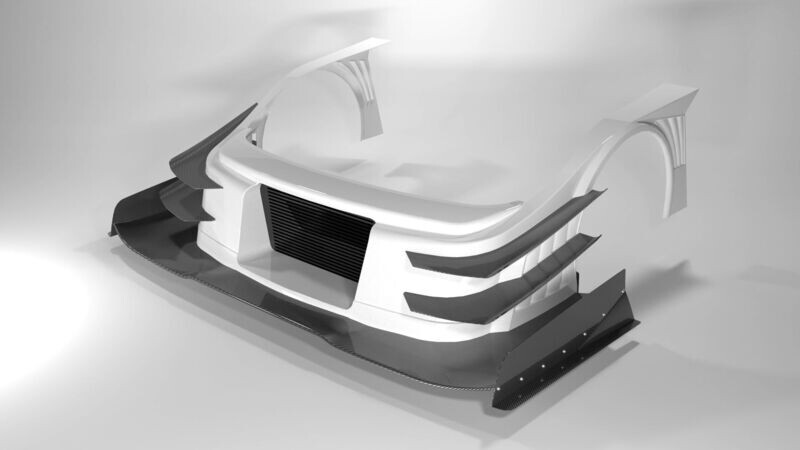

Typically fitted to the front bumper and/or front wing/arch, a set of our Large Canards will help to tune the front downforce and provide some useful side vortex's that can be used to help draw high pressure air out of the front wheel arch.
Either fitted as a single pair, or double up and go large with two sets for the ultimate front end setup. Supplied oversize ready to be trimmed to suit your vehicle profile, fitment preference and position.

Specification

Material: Carbon Fibre (2x2 Twill & Bi-Axial core)
Resin Infused producing high-strength & low weight parts
Designed using CFD to ensure optimum performance
Dimensions each: 730mm x 400mm x 35mm (LxWxH)

Sold as a pair, left & right hand


Installation

The Large Cannards will need to be trimmed to suit the profile of your chosen installation location, use a good quality cutoff disc (e.g. permagrit) and make sure to wear appropriate PPE (Dust Mask and Goggles).
They can be fitted to any suitable front end surface providing you have fixing access, designed to be riveted or bolted using low profile hardware in combination with some bonding if required.

Placement of the canards is largely down to their intended function within your aero setup, however as a rule of thumb try to achieve an AOA (angle of attack) of around 15deg +/-5deg to ensure they are driven adequately but prevent excessive drag.
